AETB Phase 1

The single phase auto electrical test bench is a compact test bench that can be operated at two speeds, ensuring thorough testing of alternator at both, higher and lower speeds. The test bench is extremely easy to operate and is an ideal addition to any workshop.

More Information

Features and Benefits

Enables testing of alternators up to 90A/ 12V and 75A/ 24V
Starter free spin testing directly from battery and short-circuit test facility available
Testing of both V Pulley and Poly V groove pulley mounted Alternators at High speed (6000 rpm) and low speeds (1500rpm, 1800rpm)
Alternator loading through six rotary switches
Battery Charging facility available during the alternator testing process
Vehicle simulation of battery charging through Alternator
Provided with 12 V battery supply for testing a wide range of electrical components like horns, bulbs, relays, child parts of Starters and Alternators

Technical Data

Instrumentation	• Alternator output current - Digital Panel meter 0-100 Amps DC • Alternator output current - Digital Panel meter 0-100 V DC
Instrumentation Drive	• Alternator output current - Digital Panel meter 0-100 Amps DC • Alternator output current - Digital Panel meter 0-100 V DC • 220V single phase, 2HP, 1440 RPM induction motor • Protected with circuit breakers
Instrumentation Protection	• Alternator output current - Digital Panel meter 0-100 Amps DC • Alternator output current - Digital Panel meter 0-100 V DC • Circuit breakers incase of sudden surges in voltage • Fuses provided for protection of rectifiers, battery etc

Power Requirements	220V single phase, 15 Amperes
Power Requirements Vice	220V single phase, 15 Amperes Heavy duty, fast mounting for alternators and starters
Power Requirements Dimensions	220V single phase, 15 Amperes 650 (l) x 725 (b) x 550 (h) mm
Power Requirements Weight	220V single phase, 15 Amperes 85 kgs

Scope of Delivery

AETB Single Phase unit
Alternator Cable
Starter Cable
Battery Cable
IGN/WL Cable
A46 V Belt
37 V Belt
4PK Poly V Belt
Bulbs (12V, 24V,)
Main Vice Handle
Glass Fuses (1.5A)
Belt Slot Cover
Mounting Bushes - 4 Nos
Testing Leeds
Operating Manual

Downloads


Product Flyer	> Download
AETB 1 Phase Operator Manual	> Download

Further products

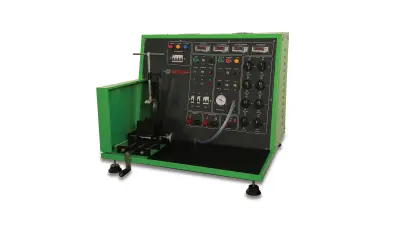

AETB Phase 3 | Bosch Mobility Aftermarket
