DCI 700

Mounting and dismounting of injectors on DCI 700

Thanks to the simple menu navigation and the graphic and numerical presentation of the results, the DCI 700 enables an efficient way of working and is therefore extremely cost-effective.

The Bosch DCI 700 diesel test bench is designed with the future in mind with its new measurement system that has the ability to test the latest common rail injector technologies for all car and commercial vehicle systems, including those with Needle Closing Control (NCC) and Valve Closing Control (VCC).

The DCI 700 offers you and your workshop super-efficient testing with its short mounting and testing times, which enable four common rail injectors to be tested in less than 15 minutes.

Designed with a tapered base, it allows the operator to stand closer to the bench without having to bend to mount the injectors. This is one of the many ergonomic features that make the DCI 700 so easy-to-use

Get in touch

More Information

Video

Learn how to efficiently test Common Rail injectors with the latest diesel test bench DCI 700 from Bosch. The video guides you step by step through the whole process of testing Common Rail injectors on DCI 700.

Features and Benefits

Ergonomic and intuitive design: For easy operation
Short mounting and testing times: For supreme efficiency
Test all cars and commercial vehicles: For versatility
New technology: For futureproofing the equipment and your requirements
Adjustable screen: Each operator can set height and angle of the screen individually
Faster, more accurate test measuring: For more precise outcomes in terms of adjustments to injectors
Online updates: Keeping you up-to-date with current test specifications
Bright, dazzle-free workspace lighting: Giving great visibility of leaks whilst also being easy on the operator’s eyes
Clear and accurate results: Demonstrate your expertise and service level to customers with a printed test report (printer optional)
No need for high-pressure hoses: To reduce service costs

Technical Data

Test pressure	30 MPa to 250 MPa
Test pressure Max. Rail pressure	30 MPa to 250 MPa 260 MPa
Test pressure Mechanical pressure limitation	30 MPa to 250 MPa 270 MPa
Test pressure Rail pressure control by	30 MPa to 250 MPa 2 Pressure control valves (DRV) on Rail and MeUN in CP4
Test pressure Automatical Injector back flow pressure control	30 MPa to 250 MPa 50 kPa to 1200 kPa
Test pressure Used HD pump for test pressure generation	30 MPa to 250 MPa CP4.2 (CP4-25)
Test pressure Capacity of test oil tank: at the max. marking at the max. marking	30 MPa to 250 MPa 45 l 35 l
Test pressure Tightening torques of high-pressure connections, locking screws	30 MPa to 250 MPa 25 Nm
Test pressure Dimensions with monitor and keyboard tray (W x H x D )	30 MPa to 250 MPa 1700 x 1736 x 1082 mm
Test pressure Dimensions without monitor and w/o keyboard tray (W / H / D )	30 MPa to 250 MPa 1616 x 1736 x 786 mm
Test pressure Weight without test oil	30 MPa to 250 MPa 590 kg

Operating System	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit
Operating System Software and data base updates	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit via DDM (Diagnostic Download Manager, Internet connection neccessary)
Operating System AC Voltage supply	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 200 VAC – 240 VAC
Operating System Rated current	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 32 A
Operating System Fuse	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 32 A
Operating System Phases	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 3 P/PE
Operating System Input frequency	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 50 Hz/60 Hz
Operating System Protection class entire test bench	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit IP 20
Operating System Air pressure, corresponds to a height of	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 700 hPa to 1060 hPa ≤ 2200m
Operating System Workplace-related emission sound pressure level according to DIN EN ISO 11201	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit < 69.2 dB(A) +/- 2.5 dB
Operating System Operating temperatur	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit 5 °C to 40 °C
Operating System Max. permissible relative humidity	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit ≤90 % (at 25 °C and 24 hours duration)
Operating System Storage temperature	Windows 10 IoT Enterprise 2019 LTSC, 64 Bit -20 °C to 60 °C

Scope of Delivery

Injector test bench DCI 700
High pressure pump CP4.2
CRI accessory kit for solenoid and piezo CRIs
15.6'' LCD Touchscreen
Tray for keyboard
Working area lightning
Electric CRI connection lead (2, 3, 4 pin)

Special Accessories


CRIN 1, CRIN 2 and CRIN 3 accessory kit for commercial vehicle CR-Injectors	1 687 010 607
Printer	1 687 001 850
Adapters for CRIN injectors	> Download

Downloads


Segment Brochure (PDF)	> Download
Product Brochure (PDF)	> Download
Manuals, updates and information	> Learn more

DCI 700 – Common Rail Injector test bench

More Information

Further products

EPS 708
– common-rail pump test bench

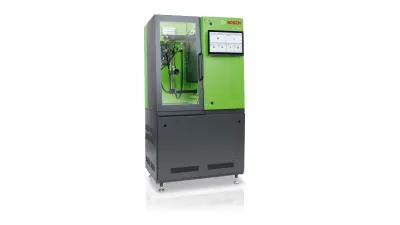

DCI 200
– single common-rail Injector test bench

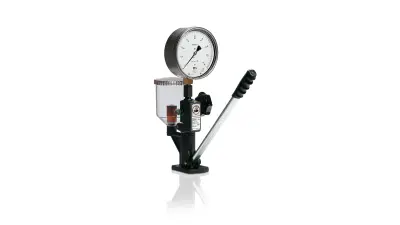

EPS 100
